Functionality and Benefits

Driving Profiles

Race The exhaust flaps are permanently open, thus increasing the volume. The result is a sporty sound.

Sport Flaps open from 3500rpm / 80% throttle (just before kickdown)

Comfort Flaps open from 4500rpm / 80% throttle (just before kickdown)

Easy Switch

ESC 2x Double click on the set button With a double click on the set button, the flaps can be opened and closed independently of the driving profiles. The automatic opening at 4500rpm is always retained.

Standard Mode

X +y Key Combination A key combination activates or deactivates the module. When the module is deactivated, everything acts as if no module is installed.

The linked video is not under the responsibility of ASR Component GmbH, but of the owner of the respective channel. It illustrates usage in countries where there are no restrictions on vehicle noise levels or other related systems.

Additional Features and Benefits

Transmission S-Detection

As soon as you set the transmission to S, both flaps open. (Function only available with original transmission coding).

SSA-Memory (available from GEN2)

Setting of the start-stop automatic is saved and restored after vehicle start.

Safe and Permanent Operation

This device is specifically designed for use with electric flap systems.

Plug & Play

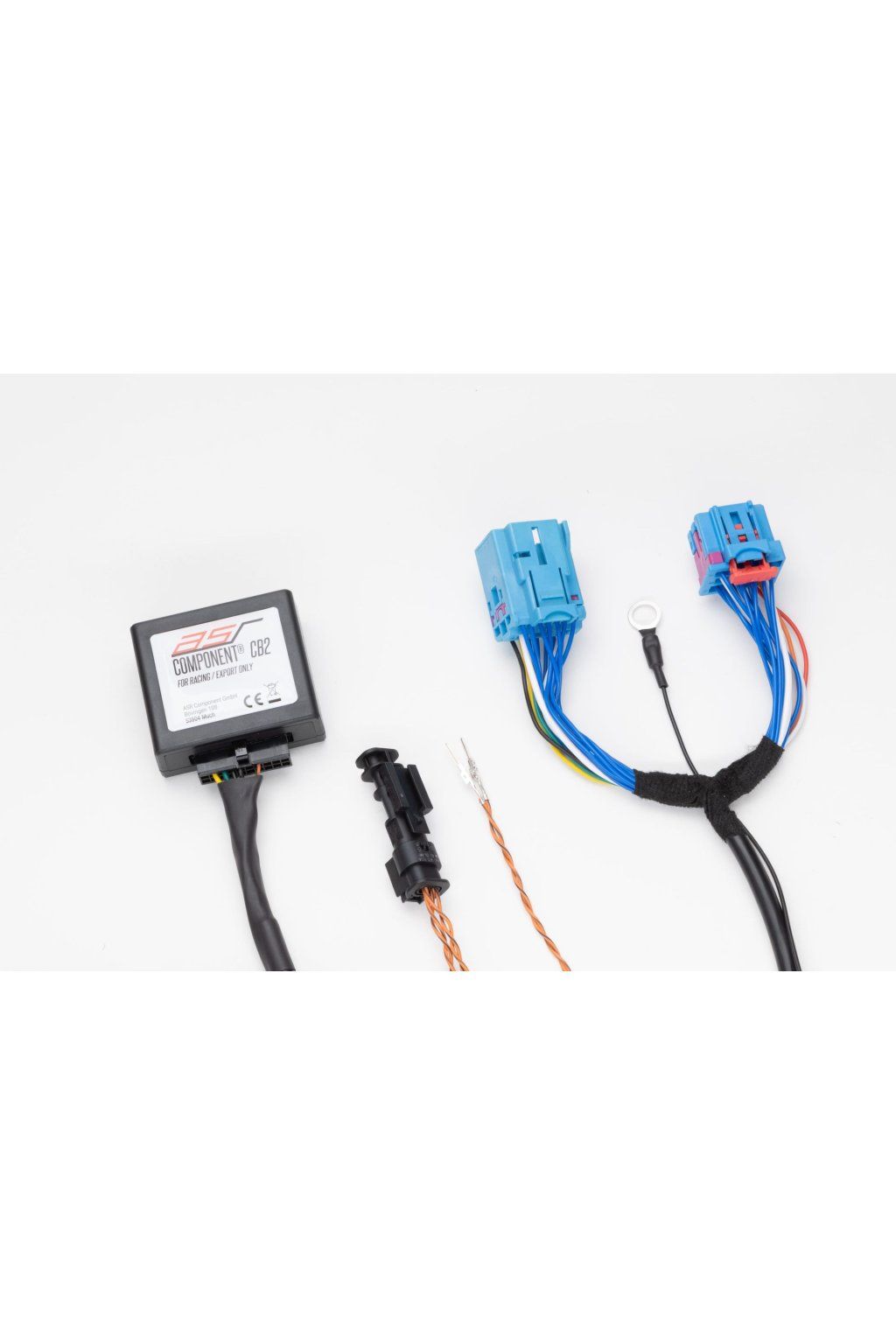

Installation is plug & play in the footwell behind the A-pillar trim. Can be reverted at any time without any traces.

Notes

• No approval in the StVO (German Road Traffic Regulations).
• For use in motorsport or for show purposes only.
• The flaps should not be completely closed during full load driving.
• Installation at your own risk.
• No liability is assumed for any damages resulting from disregarding the notes.
• Electrical devices and batteries must not be disposed of in household waste. Please observe our notes on disposal.
